Qicheng has a variety of advanced processing, manufacturing and testing equipment, spacious assembly and trial operation workshops, and can conduct large-scale production system simulation tests to realize the overall production system from parts manufacturing, assembly, testing, to the final completion of the production system. Our backbone team is a group of engineers with rich experience and flexible thinking, and they are a super-class professional team.
Read More
開式?jīng)_床或小型液壓機連線，壓機斷續模式生產，機器人拆垛，生產節拍可達每分鐘15SPM
Read More +
開式?jīng)_床或小型液壓機連線，壓機斷續模式生產，片料機拆垛，生產節拍可達每分鐘15SPM
Read More +
壓機斷續模式生產，生產節拍可達每分鐘12SPM
Read More +
壓機同步控制連續模式生產，生產節拍可達每分鐘14SPM，相比斷續模式機床能耗節約達30%以上，并有效保護模具和機床延長使用壽命。
Read More +
壓機同步控制連續模式生產，生產節拍可達每分鐘18SPM，相比斷續模式機床能耗節約達30%以上，并有效保護模具和機床延長使用壽命。
Read More +
壓機同步控制連續模式生產，生產節拍可達每分鐘18SPM，相比斷續模式機床能耗節約達30%以上，并有效保護模具和機床延長使用壽命。
Read More +
啟成簡介啟成是行業內第一家也是唯一一家定位金屬成形智能工廠整體解決方案提供商的企業，我們憑借多年前在數字化信息化、整廠規劃等領域、機器人的布局，以及金屬成形多個智能車間及智能工廠的實施案例，使我們擁有從前期的整廠規劃到整廠數字化信息化的建設到各種金屬成形自動化裝備的制造能力，并攜手行業眾多頂級合作伙伴建立了一條完整的生態鏈，可為客戶提供金屬成形智能車間智能工廠完整的解決方案。是金屬成形智能工廠完整
Read More +

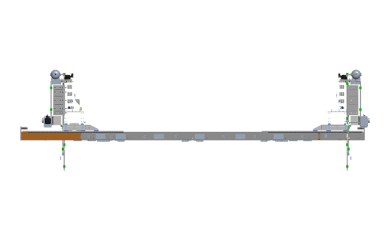

Our Transfer and multi-station systems feature a proven modular design with aluminium profiles, very low vibration and optimum dynamic performance, resulting in increased cycle times and productivity.
Read More

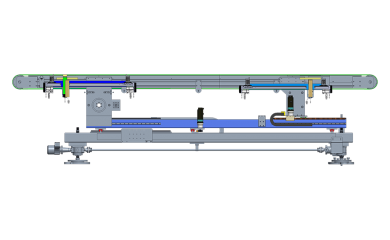

The Magnet Belt is used to transport the destacking sheet picked up by the robot or manipulator to the 0 station. It adopts variable frequency drive to realize the speed matching of the whole line. The optional X, Y, Z, and three axes can be adjusted to adapt to different shapes of sheets.
Read More

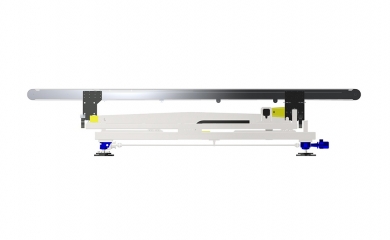

Magnet(vacuum) Belt adopts the friction sealing structure of vacuum box and endless belt, which is used to transport the non-magnetic sheet picked up by robot or manipulator to washing machine, oiling machine or centering station.
Read More

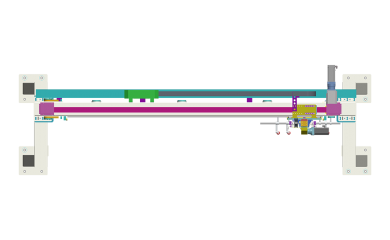

Single head robots shuttle between the depalletizing table and the conveying line. The moving part adopts linear rails and synchronous belts. It runs quietly and smoothly. With advanced control system, it can realize high-speed depalletizing of sheets without lifting the sheets. The beat can reach 18 beats/minute.
Read More

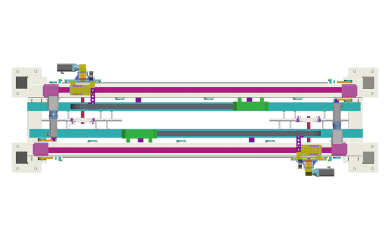

Double head robots combine two single-head depalletizing robots on one rack to save space, shuttle between the depalletizing table and the conveyor line, meeting the high-speed transmission requirements of multi-station systems, with a beat of 30 times per minute.
Read More

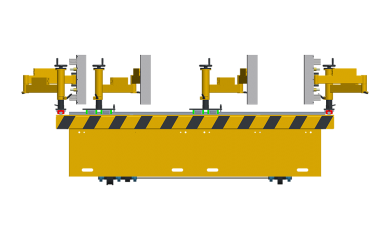

Destacker Carriage is mainly used to separate stacks and help robots or robots to destack. The articulated or hand-held magnetic separator can be installed on the table, which is suitable for the magnetic separation of various special-shaped sheets; the trolley has a driving and drag chain mechanism, which can move on the pre-laid guide rails to facilitate the replacement of stacks, The robot can be instructed to automatically switch to another machine when the sheet is dismantled, so that the stacking material can be replenished without interruption.
Read More

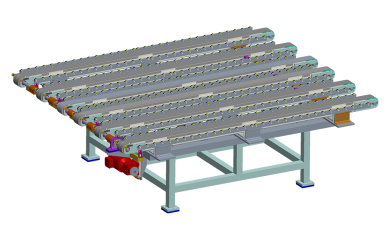

Conveyer belts are used to transport depalletized sheets picked up by robots or manipulators to cleaning machines, oilers or alignment stations. Using variable frequency drive to achieve the entire line speed matching.
Read More

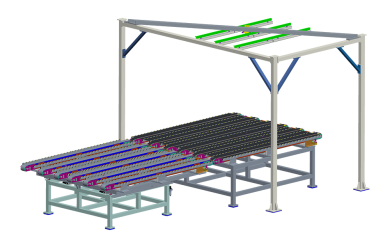

The entire upper surface of the optical centering conveyor is designed in black. It adopts the robot visual recognition technology to automatically adjust the trajectory of the robot. It has high flexibility and is more suitable for the production of special-shaped double-sheet materials.
Read More

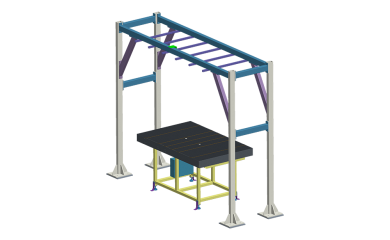

The optical centering station adopts the robot visual recognition technology to automatically adjust the trajectory of the robot, with high flexibility, and is more suitable for the production of special-shaped double-sheet materials.
Read More

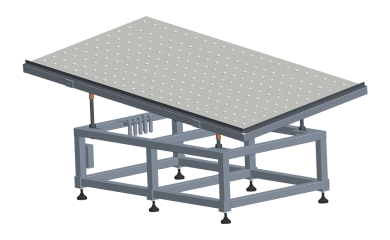

The table of the Gravitational centering station is inclined to a corner, and the sheet is just positioned at this corner. The bull's eye bearing on the table can be quickly removed and replaced with a stopper column. In this way, the special-shaped sheet can be positioned or two sheets can be positioned at a time, positioning The accuracy is about 1 mm, the structure of the gravity centering table is simple, and the price is cheap.
Read More

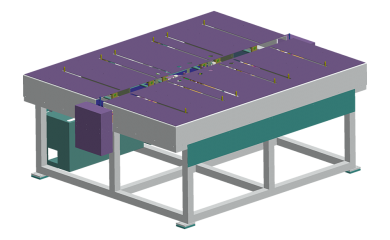

Mechanical centering station adopts servo screw beating technology, and all beating devices are programmable. It can meet the production requirements of one-piece and two-piece sheet metal.
Read MoreWe have experience and expertise in various fields accumulated on the front lines of production in various countries, and we can provide strong support.
Qicheng's advantage lies in its advanced "planning, scheme and design capabilities", strong "manufacturing capabilities" and extremely practical "service capabilities".
More >>
The origin of smart manufacturing is smart factory, and the concept of smart factory was first proposed by IBM in 2009
2021-09-10
The origin of smart manufacturing is smart factory, and the concept of smart factory was first proposed by IBM in 2009
2021-09-10
The origin of smart manufacturing is smart factory, and the concept of smart factory was first proposed by IBM in 2009
2021-09-10
The origin of smart manufacturing is smart factory, and the concept of smart factory was first proposed by IBM in 2009
2021-09-10
Qicheng Science and Technology Park
overs an area of 35 acres
The total plant area is 35,000
square meters
1 headquarters production base,
2 R&D centers, 14 offices and
branches at home and abroad
Provide customers with 1000+
automatic lines and multiple
smart factory implementation cases
The industrial layout has four
major sectors: stamping,
digitalization,smart factory and robot
